Description

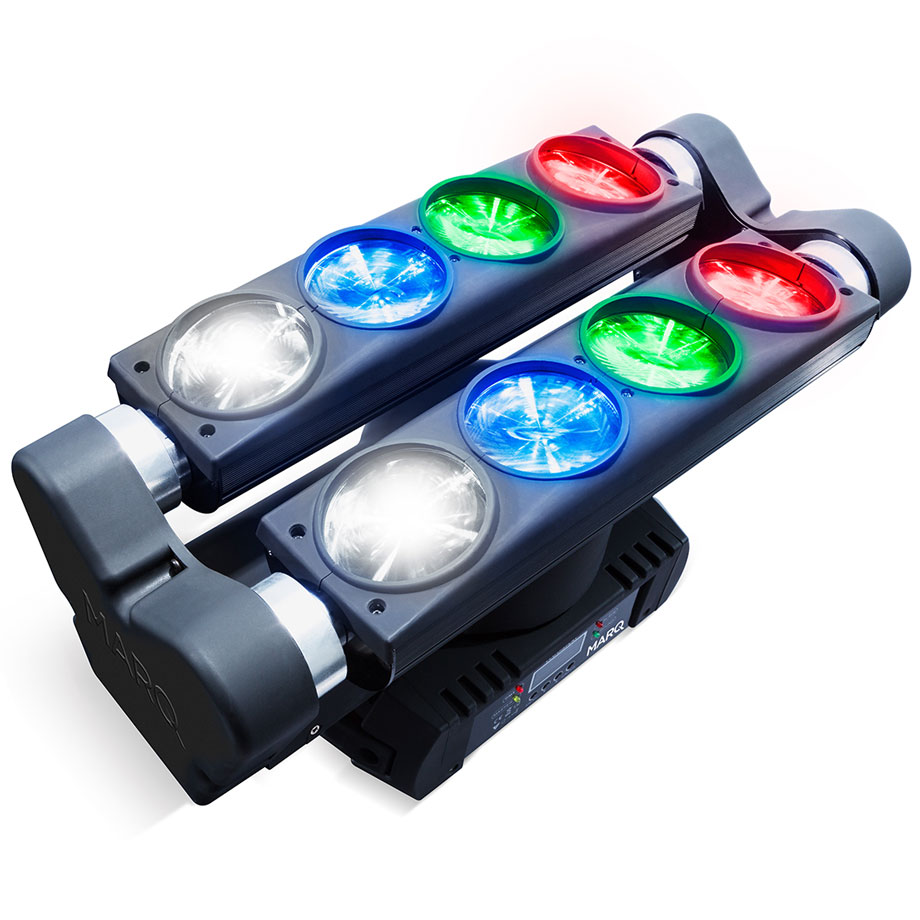

Ray Tracer X Quad delivers 8 razor-sharp color RGBW beams of light for astonishing aerial effects from a rotating base. Two independently controlled rollers provide infinite and continuous panning. Individual LED control affords completely custom programming and animations, while the built-in color programs and movement macros cab create a dynamic lightshow without the need for a separate controller.
FEATURES
Stunning moving light array with 2 independently controlled rollers and 8 tight multi-color beams cutting through the air, all on a rotating base
Narrow, razor-sharp beams of RGBW (red/green/blue/white) light for astonishing aerial effects
Individual LED control for completely custom programming and animations
Built-in color programs and movement macros creates a dynamic lightshow without a controller
¼-turn mounting bracket included faster setup between shows
Power Linking enables faster setup with fewer cables
SPECS
DMX Channels 12 or 41
DMX Connectors 3-pin DMX in/out
Light Source 8 X 10W CREE RGBW 4-IN-1 high power LED lamps
Strobe Rate: 0 – 10 Hz
Beam Angle 5°
Pan Ranges: 0° – 630°
Tilt Ranges: 0° – 150°
Power Linking: 4 units
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-switching)
Power and Current: 125w
Unit Weight: 6.5 kg; 14.3 lbs
Package Weight: 8.6 kg; 19.0 lbs
Unit Size: 420 x 190 x 270mm; 16.5 x 7.5 x 10.6in; 1.38 × 0.62 × 0.89ft
Package Size: 500 × 360 × 290mm; 19.7 × 14.2 × 11.4in; 1.64 × 1.18 × 0.95ft
Approvals: CE, FCC
